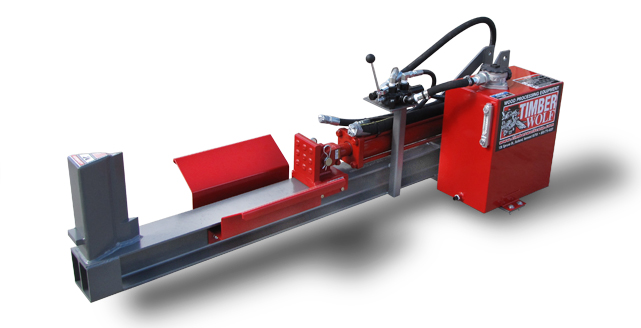

TW-3 Log Splitter

TW-3 Log Splitter
Select each thumbnail below to enlarge image
TW-3 Hydraulic Split Lever TW-3 Log Splitter Standard Two-Way Wedge TW-3 Log Splitter Tractor Mount Assembly TW-3 Log Splitter Hydraulic Tank

Timberwolf's TW-3 Log Splitter is entirely PTO driven, making it a natural fit for any tractor owner. This model is ideal for home or farm use, and features a 6 second cycle time.

Please note that due to the varying sizes of tractors and PTO locations, this machine arrives with hoses unattached. As a result, there is no hydraulic fluid in the tank on arrival.

Specifications

Wt./Dimensions
450 lbs / 26"(H) x 36"(W) x 76"(L)
Splitting Tons
17
Engine Size
Requires 16HP Tractor Engine
Pump (gpm)
21
Hydraulic Tank Capacity (gal)
15
Maximum Log Length
24"
Cylinder Size
24" x 4" x 2"
Cycle Time (sec)
6
Frame
5"
Hitch
N/A
4-Way Wedge
OPT
6-Way Wedge
N/A
Log Lift
(Manual) OPT
Table Grate
OPT
Wheel
N/A
Wedge Lift
N/A
